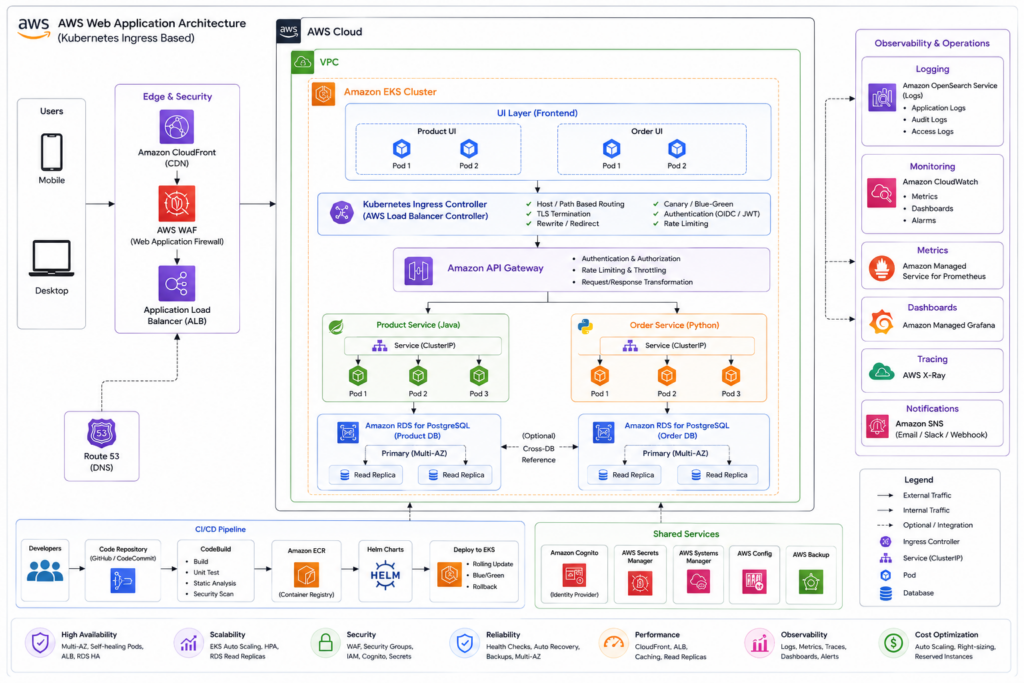

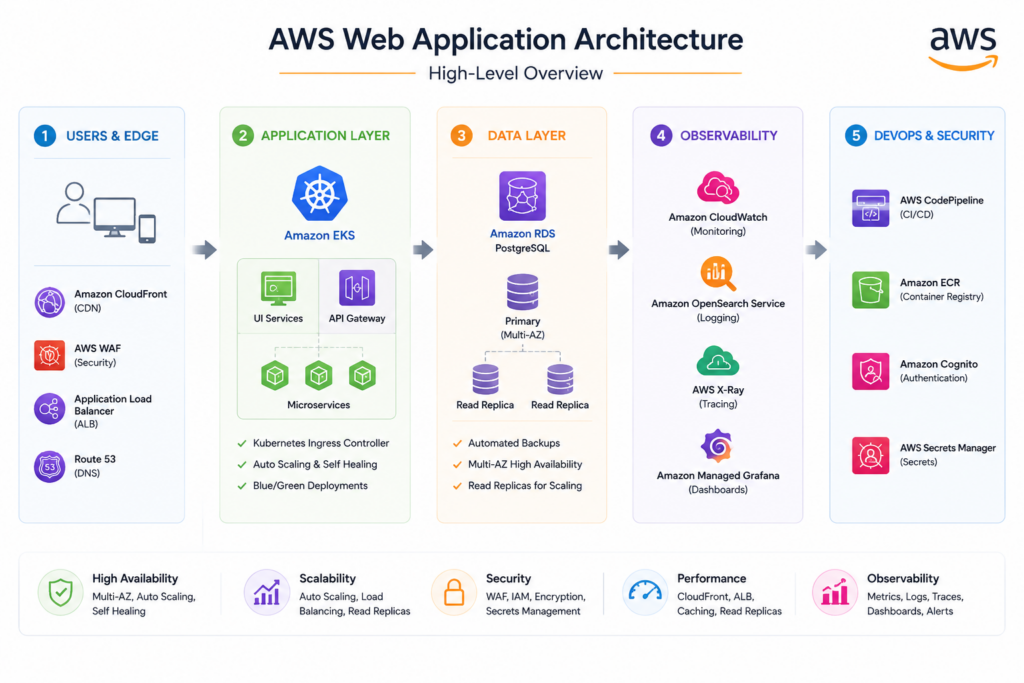

High level architecture

More detailed architecture

On-Prem vs AWS Architecture Mapping

Your original architecture was:

Users (Mobile/Desktop)
        │
        ▼
F5 BIG-IP (ASM + LTM)
        │
        ▼
UI Layer
 ├─ Product UI (2 Instances)
 └─ Order UI (2 Instances)
        │
        ▼
API Gateway
        │
        ▼
Kubernetes Ingress Controller
        │
 ┌──────┴───────┐
 ▼              ▼
Product Service   Order Service
(Java Pods)       (Python Pods)
        │
        ▼
PostgreSQL Databases
        │
        ▼
ELK / Monitoring

CI/CD: Jenkins + Helm
Identity: UC (Keycloak)

---

AWS Equivalent Architecture

Users (Mobile/Desktop)
        │
        ▼
CloudFront
        │
        ▼
AWS WAF
        │
        ▼
Application Load Balancer (ALB)
        │
        ▼
Amazon EKS Ingress Controller
(AWS Load Balancer Controller)
        │
        ▼
UI Layer
 ├─ Product UI Pods (2)
 └─ Order UI Pods (2)
        │
        ▼
Amazon API Gateway
        │
 ┌──────┴──────────┐
 ▼                 ▼
Product Service     Order Service
(Java Pods)         (Python Pods)
3 Pods              3 Pods
        │
        ▼
Amazon RDS PostgreSQL
(Product DB)

Amazon RDS PostgreSQL
(Order DB)

Read Replicas

---

Service Mapping Table

On-Prem	AWS Equivalent
F5 ASM	AWS WAF
F5 LTM	Application Load Balancer (ALB)
Kubernetes Cluster	Amazon EKS
Kubernetes Ingress	AWS Load Balancer Controller
API Gateway	Amazon API Gateway
Product UI Pods	EKS Deployment
Order UI Pods	EKS Deployment
Java Product Pods	EKS Deployment
Python Order Pods	EKS Deployment
PostgreSQL	Amazon RDS PostgreSQL
PostgreSQL Replica	RDS Read Replica
ELK	OpenSearch Service
Prometheus	Amazon Managed Prometheus
Grafana	Amazon Managed Grafana
Keycloak	Keycloak on EKS or Amazon Cognito
Jenkins	Jenkins on EKS / EC2
Harbor/Nexus	Amazon ECR
Helm	Helm
DNS	Route 53
CDN	CloudFront
Backup	AWS Backup

---

Detailed AWS Architecture

1. Edge Layer

Amazon CloudFront

Equivalent to:

• CDN
• Edge acceleration
• Static content delivery

Responsibilities

• Global caching
• SSL termination
• DDoS absorption
• Content acceleration

---

AWS WAF

Equivalent to F5 ASM.

Protects against:

• SQL Injection
• XSS
• OWASP Top 10
• Bots
• Malicious requests

---

Application Load Balancer

Equivalent to F5 LTM.

Responsibilities:

• Layer 7 routing
• SSL termination
• Health checks
• Load balancing

---

2. Kubernetes Platform

Amazon Elastic Kubernetes Service

Equivalent to on-prem Kubernetes.

Hosts:

Frontend Namespace
 ├─ Product UI (2 Pods)
 └─ Order UI (2 Pods)

Backend Namespace
 ├─ Product Service (3 Java Pods)
 └─ Order Service (3 Python Pods)

Features

• Managed control plane
• Auto-scaling
• Self-healing
• Rolling deployments

---

3. Kubernetes Ingress Layer

AWS Load Balancer Controller

Equivalent to:

NGINX Ingress Controller

Creates:

• Application Load Balancers
• Target Groups
• Listener Rules

Automatically from Kubernetes Ingress objects.

Example

product.company.com
        ↓
Product UI

order.company.com
        ↓
Order UI

api.company.com/products/*
        ↓
Product Service

api.company.com/orders/*
        ↓
Order Service

---

4. API Layer

Amazon API Gateway

Responsibilities:

• Authentication
• JWT validation
• Rate limiting
• API analytics
• Request transformation

Flow

Ingress
      ↓
API Gateway
      ↓
Microservices

---

5. Product Domain

Product Service (Java)

product-service
├── Pod 1
├── Pod 2
└── Pod 3

Responsibilities:

• Catalog
• Inventory
• Pricing
• Search

Uses:

ClusterIP Service
      ↓
Java Pods

No HAProxy required.

---

6. Order Domain

Order Service (Python)

order-service
├── Pod 1
├── Pod 2
└── Pod 3

Responsibilities:

• Orders
• Checkout
• Fulfillment
• Workflow orchestration

Uses:

ClusterIP Service
      ↓
Python Pods

---

7. Database Layer

Amazon RDS PostgreSQL

Product Database

Stores:

• Products
• Pricing
• Inventory

Order Database

Stores:

• Orders
• Transactions
• Status

---

High Availability Design

Primary (Multi-AZ)
       │
 ┌─────┴─────┐
 ▼           ▼
Read Replica 1
Read Replica 2

Benefits:

• Automatic failover
• Read scaling
• Backup

---

8. Observability

Logging

Amazon OpenSearch Service

Equivalent to ELK.

Fluent Bit
      ↓
OpenSearch
      ↓
Dashboards

Stores:

• Application logs
• Audit logs
• Security logs

---

Monitoring

Amazon Managed Service for Prometheus

Collects:

• Pod metrics
• Cluster metrics
• Application metrics

---

Amazon Managed Grafana

Provides:

• Dashboards
• Alerting
• SLO tracking

---

Distributed Tracing

AWS X-Ray

Tracks:

User
 ↓
ALB
 ↓
API Gateway
 ↓
Product Service
 ↓
RDS

---

9. Identity / User Center (UC)

Option A (Recommended)

Amazon Cognito

Features:

• OAuth2
• OIDC
• MFA
• SSO
• Social login

---

Option B

Keycloak on EKS.

Suitable when migrating directly from on-prem Keycloak.

---

10. CI/CD Pipeline

AWS Native

Developer
     ↓
CodeCommit / GitHub
     ↓
CodeBuild
     ↓
Security Scan
     ↓
Amazon ECR
     ↓
Helm Charts
     ↓
Deploy to EKS

Services

• AWS CodePipeline
• AWS CodeBuild
• Amazon Elastic Container Registry

---

AWS NFR Mapping

NFR	AWS Services
Availability	ALB, EKS, Multi-AZ RDS, Route 53
Scalability	EKS HPA, Cluster Autoscaler, API Gateway
Performance	CloudFront, ALB, RDS Read Replicas
Security	WAF, Cognito, IAM, Security Groups
Reliability	Multi-AZ, Self-healing Pods
Observability	OpenSearch, Prometheus, Grafana, X-Ray
Recoverability	AWS Backup, Multi-AZ RDS, EKS Backup
Maintainability	Helm, EKS, Managed Services
Deployability	CodePipeline, CodeBuild, ECR
Auditability	CloudTrail, OpenSearch, Cognito Logs

Recommended Production AWS Architecture

Users
   ↓
CloudFront
   ↓
AWS WAF
   ↓
ALB
   ↓
EKS Ingress Controller
   ↓
Product UI (2 Pods)
Order UI (2 Pods)
   ↓
API Gateway
   ↓
Product Service (3 Java Pods)
Order Service (3 Python Pods)
   ↓
Amazon RDS PostgreSQL
(Multi-AZ + Read Replicas)

Observability:
OpenSearch + Prometheus + Grafana + X-Ray

Identity:
Cognito

CI/CD:
GitHub → CodeBuild → ECR → Helm → EKS

This is the closest AWS equivalent to your original on-prem F5 + Kubernetes Ingress architecture while maximizing AWS-managed services and minimizing operational overhead.
